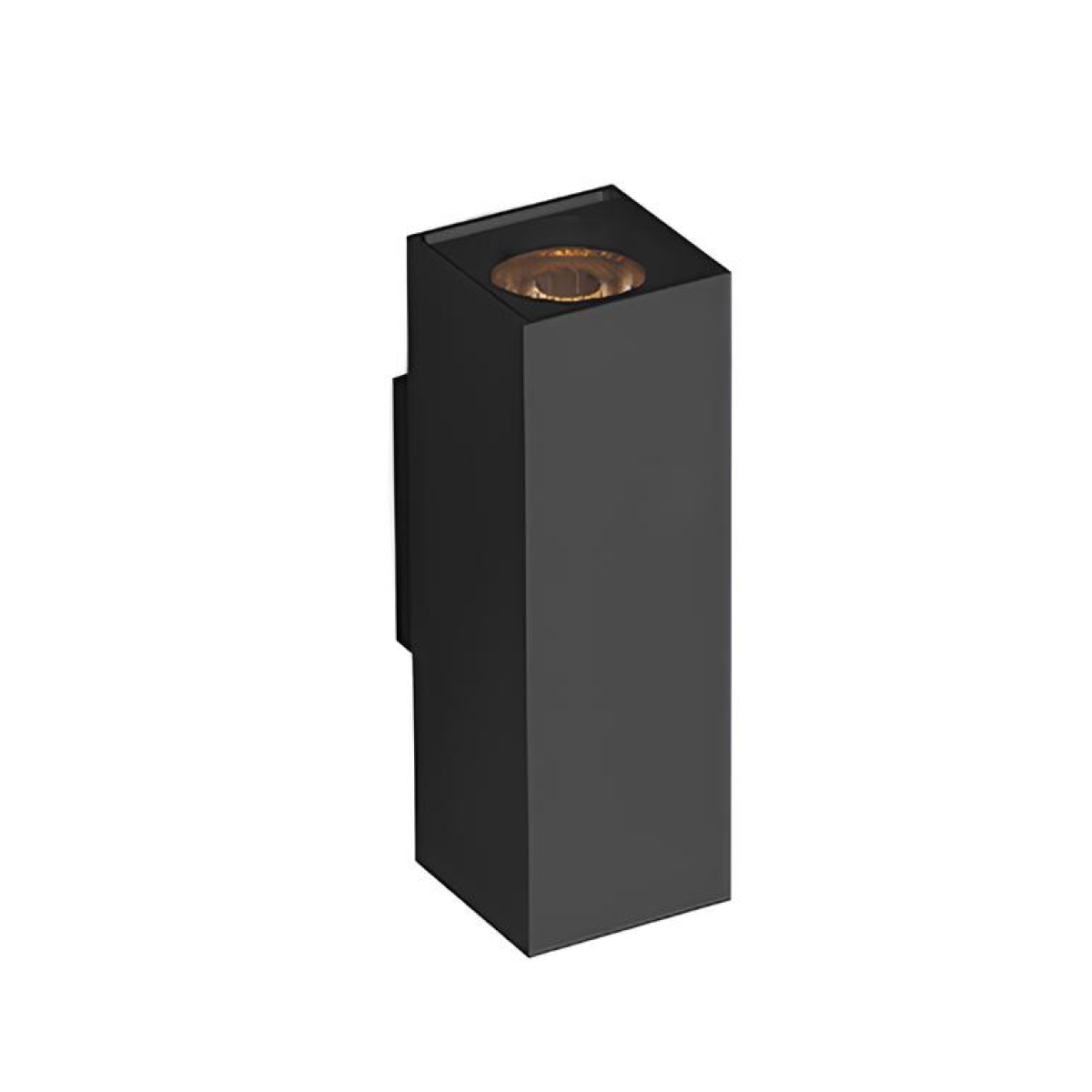

ASTRO 15 SQ UD

The square  shape WALL comes in many different models, but they all have one thing in common: its quite small tubular shape is what defines this range of lighting fixtures. Whether in single use or accompanied by another cylinder to make it directional, this one is always a beauty. WALL comes in many playful finishing colours. To complete the range, up and down versions are available for choice.  In addition, any lamp can be equipped by different optical accessories  in order to create unique lighting patterns on the wall.

Available colors:
20176-W15UD
20176-B15UD
Beam angle:
10° 18° 20° 31° 60°
LED Color:
2700K 3000K 4000K 6000K
LED power:
2x7.5W
CRI:
90
Lamp Lumen:
2x837lm
Material:
aluminium
Location:
Exterior lamps
Fixation:
Exterior
Installation:
Floodlight

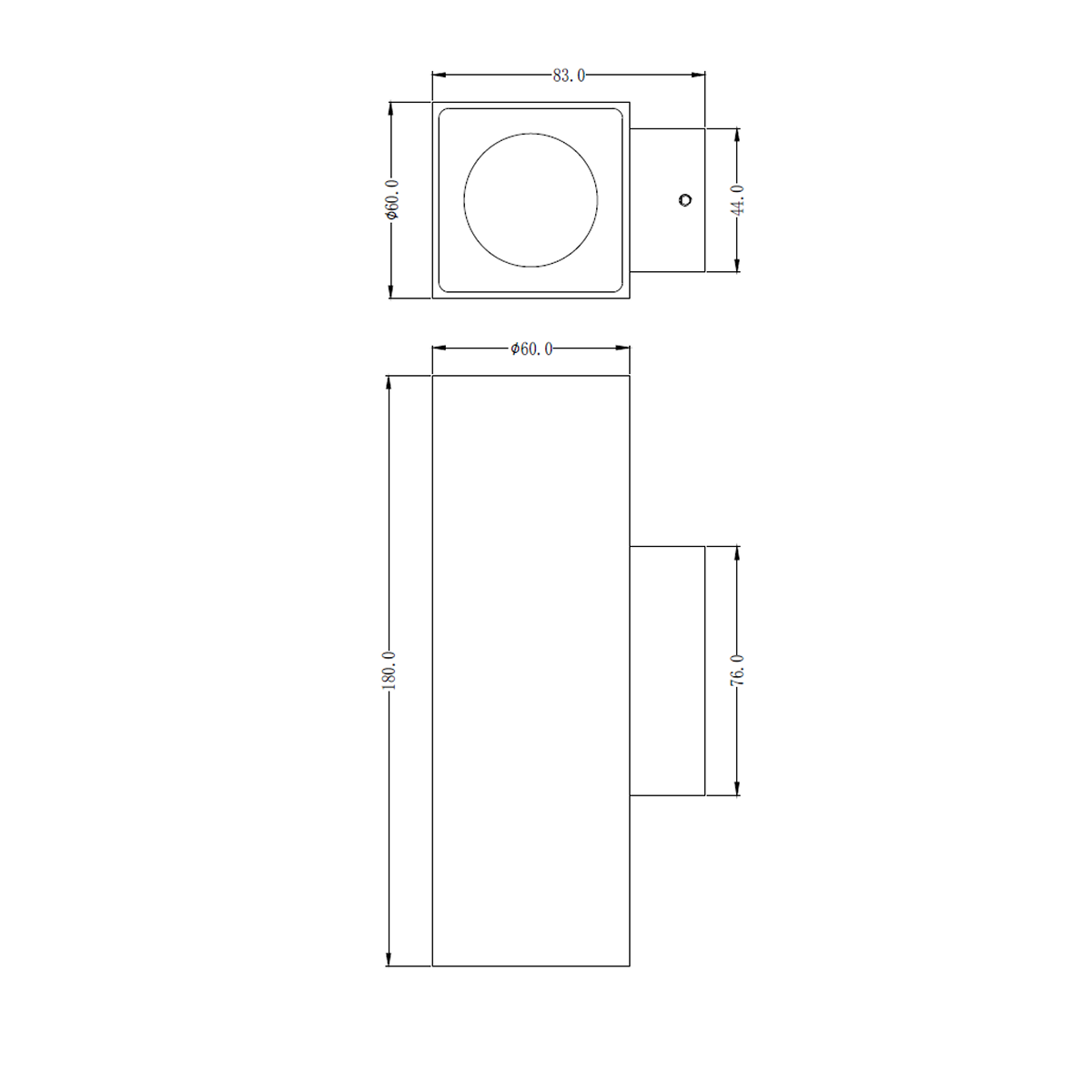

Product dimension:
60x60x180mm
Input:
220-240V 50/60HZ
IP:
65
Class:
II
DIM Option:
DALI RGB DMX PWM RGBW
IK:
08
select options
contact OUR manager
Download PDF
