GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS

Available colors:
1226-W9AD-TR-Z
1226-B9AD-TR-Z
1226-G9AD-TR-Z
1226-CR9AD-TR-Z
Beam angle:
11-35°
LED Color:
2700K 3000K 4000K
LED power:
7,7W
Lamp Power:
9W
CRI:
90
Lamp Lumen:
450lm
Material:
die-casting powder coating aluminum
Location:
Interior
Fixation:
Celling
Installation:
Recessed

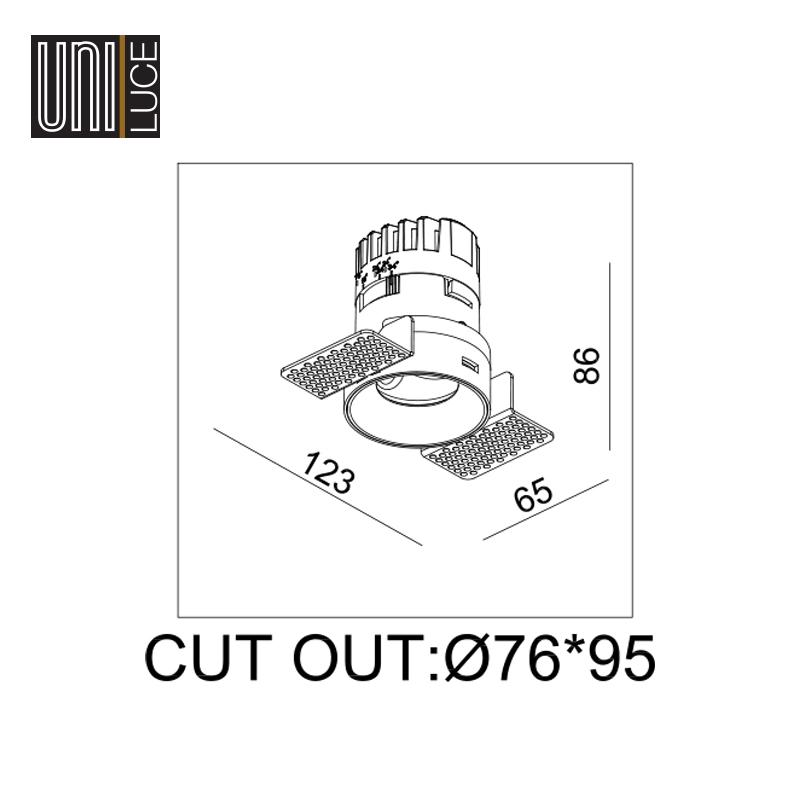

Product dimension:
D65 x H86 x L123mm
Cut hole size:
76mm
Input:
200-240V 50\60 Hz
IP:
54
Class:
III
DIM Option:
ON/OFF DALI TRIAC DTW
Structure:
Rotation: 355°, Spot Adjust: 0~30°
select options
contact OUR manager
Download PDF
GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS
GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS
GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS
GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS
Download | Links
GOAL 9 RO ADJUSTABLE ZOOM TRIMLESS.pdf

recommended accessories

HONEYCOMB GOAL 9 HONEYCOMB GOAL 9
LINER SOFT COVER GOAL 9 LINER SOFT COVER GOAL 9
SPREAD COVER GOAL 9 SPREAD COVER GOAL 9
SOFT COVER GOAL 9 SOFT COVER GOAL 9
