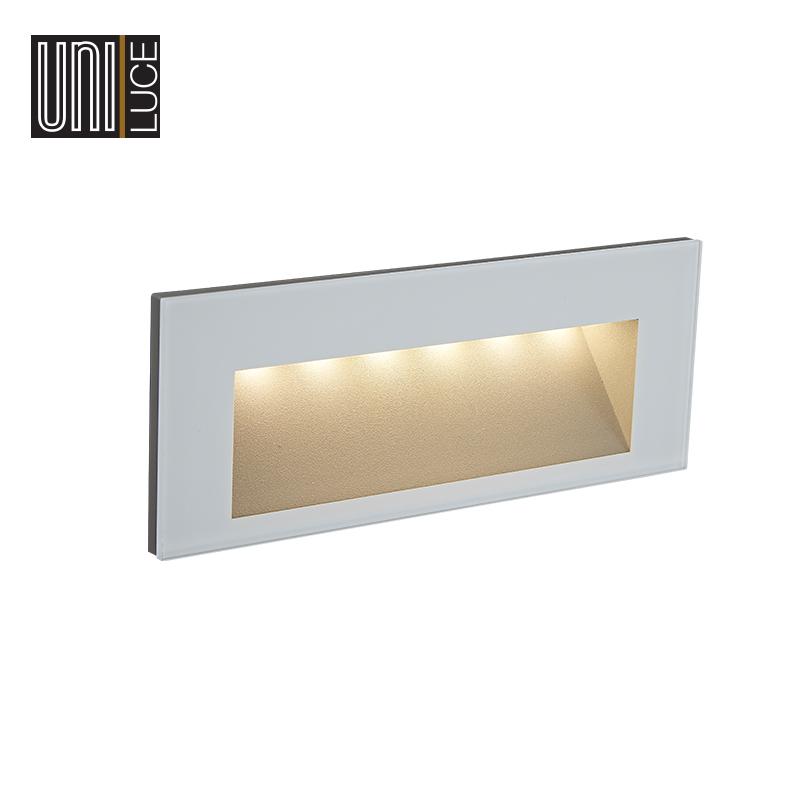

GUIDE 4

Available colors:
1544-B4
1544-W4
1544-GR4
1544-DGR4
Beam angle:
Asymmetric°
LED Color:
3000K 4000K 6000K 5000K
Lamp Power:
12X0.29W
Lamp Lumen:
397lm
Material:
die-casting powder coating aluminum, glass
Location:
Exterior
Fixation:
Wall
Installation:
Recessed
Product dimension:
L165 x 62 x 37mm
Input:
220-240V 50/60HZ
IP:
67
Class:
I
IK:
08
select options
contact OUR manager
Download PDF
GUIDE 4
GUIDE 4
Download | Links
GUIDE.pdf
