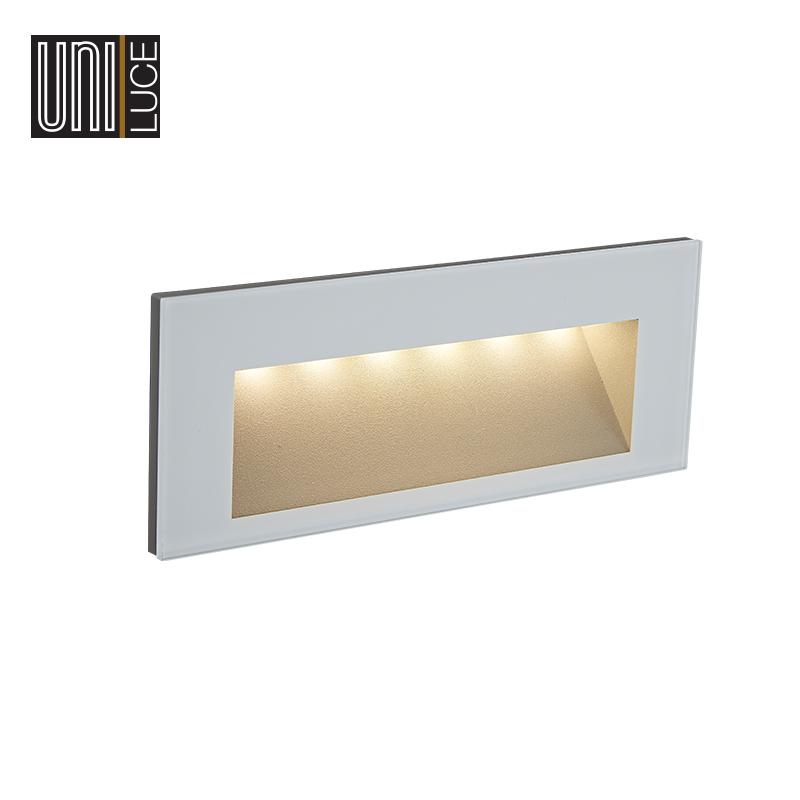

GUIDE 4 24V

Available colors:
1544-B4-VD
1544-W4-VD
1544-GR4-VD
1544-DGR4-VD
Beam angle:
Asymmetric°
LED Color:
3000K 4000K 6000K 5000K
Lamp Power:
12X0.34W
Lamp Lumen:
397lm
Material:
die-casting powder coating aluminum
Location:
Exterior
Fixation:
Wall
Installation:
Recessed

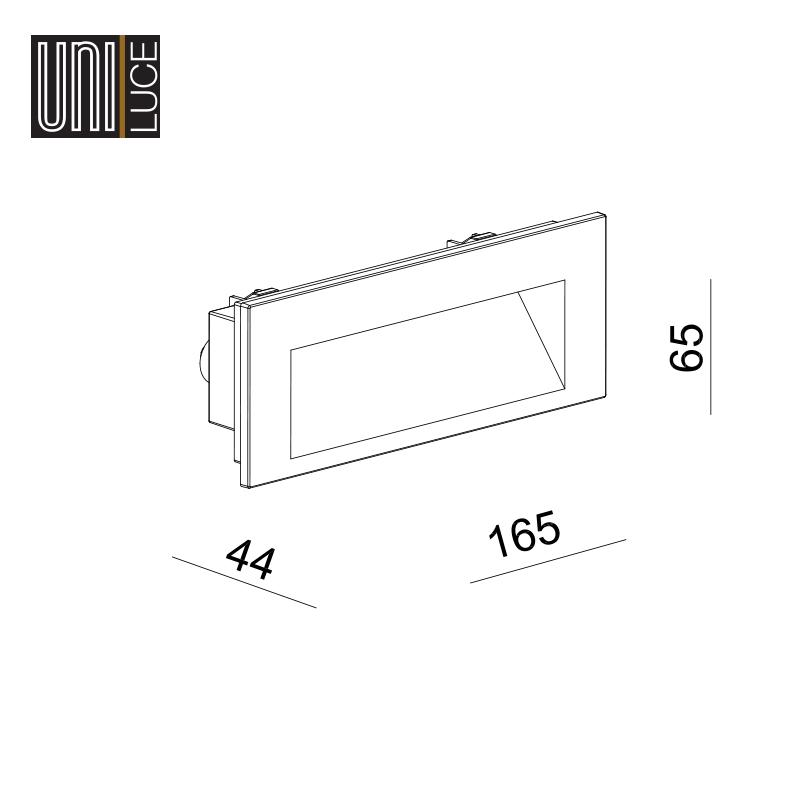

Product dimension:
L165 x 62 x 37mm
Input:
24V DC
IP:
67
Class:
I
IK:
08
select options
contact OUR manager
Download PDF
GUIDE 4 24V
GUIDE 4 24V
Download | Links
GUIDE 24V.pdf
