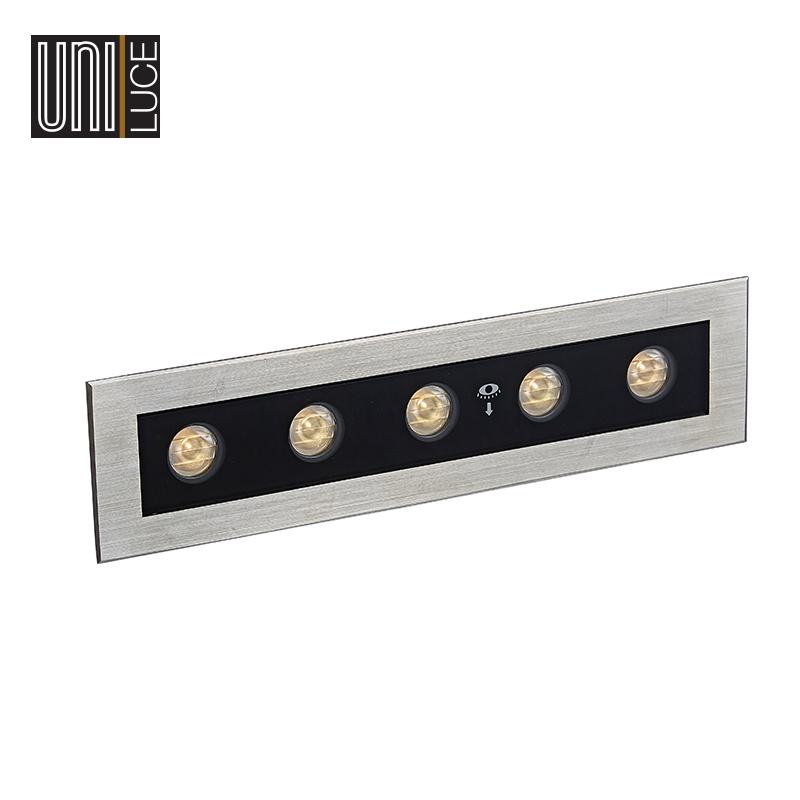

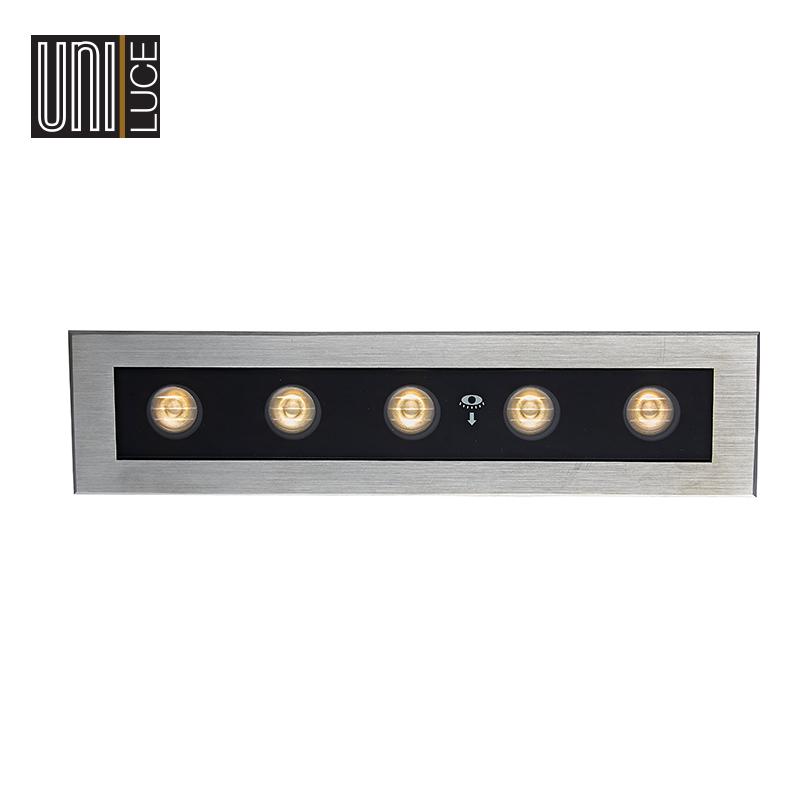

GUIDE PATH 12 24V (Black-Stainless Steel)

Available colors:
1558-BSS5-VD
Beam angle:
Asymmetric°
LED Color:
3000K 4000K 6000K 5000K
Lamp Power:
5X2.3W
Lamp Lumen:
970lm
Material:
Stainless Steel, Glass
Location:
Exterior
Fixation:
Celling
Installation:
Recessed

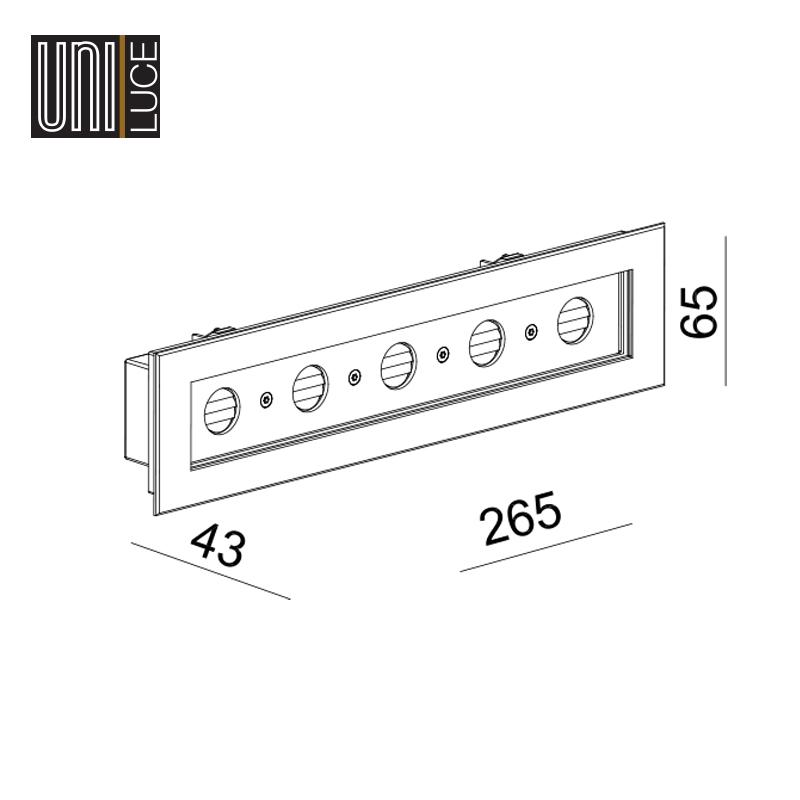

Product dimension:
L265 x 65 x 44mm
Input:
24V DC
IP:
67
Class:
I
IK:
08
select options
contact OUR manager
Download PDF
GUIDE PATH 12 24V
GUIDE PATH 12 24V
GUIDE PATH 12 24V
Download | Links
GUIDE PATH 12 24V.pdf
