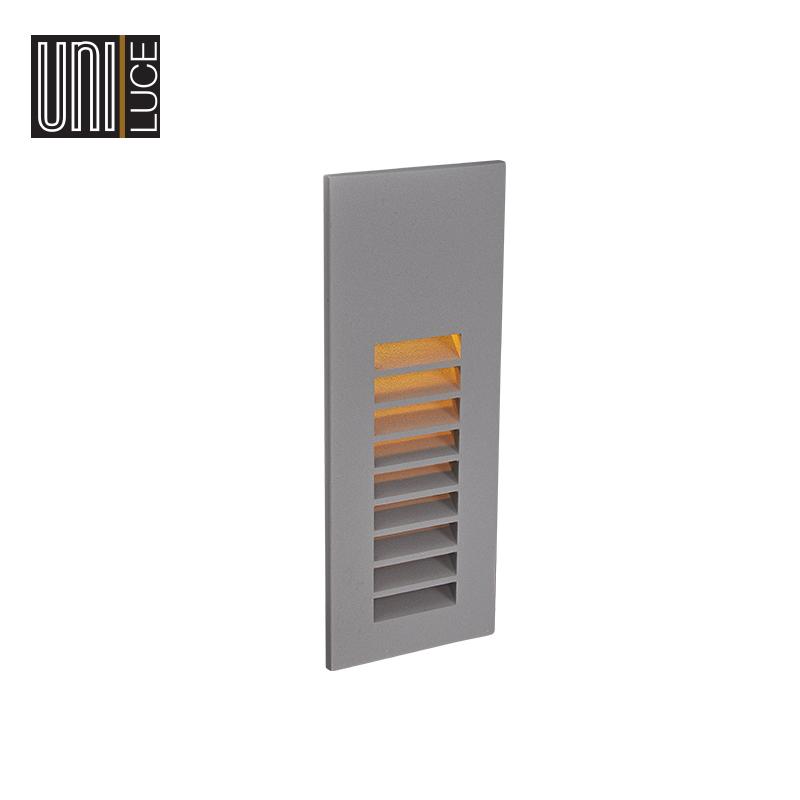

GUIDE VERTICAL 5 RASTER

Available colors:
1556-B5
1556-W5
1556-GR5
1556-DGR5
Beam angle:
ASYM°
LED Color:
3000K 4000K 6000K 5000K
Lamp Power:
18x0.25W
Lamp Lumen:
521lm
Material:
die-casting powder coating aluminum, glass
Location:
Exterior
Fixation:
Wall
Installation:
Recessed

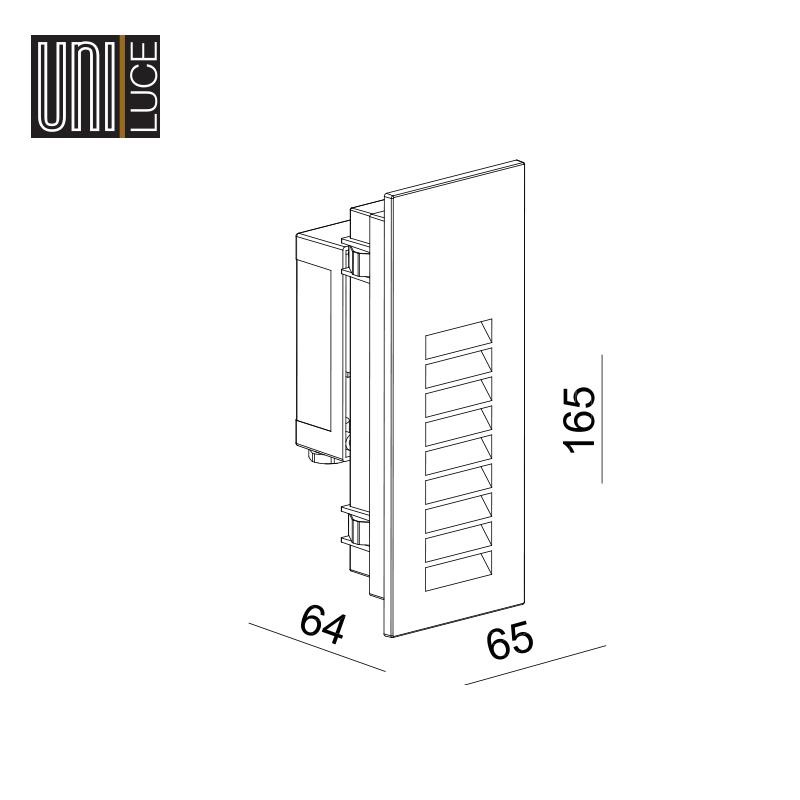

Product dimension:
L165 x 62 x 37mm
Input:
220-240V 50\60Hz
IP:
67
Class:
I
IK:
08
select options
contact OUR manager
Download PDF
GUIDE VERTICAL 5 RASTER
GUIDE VERTICAL 5 RASTER
Download | Links
GUIDE VERTICAL 5 RASTER.pdf
