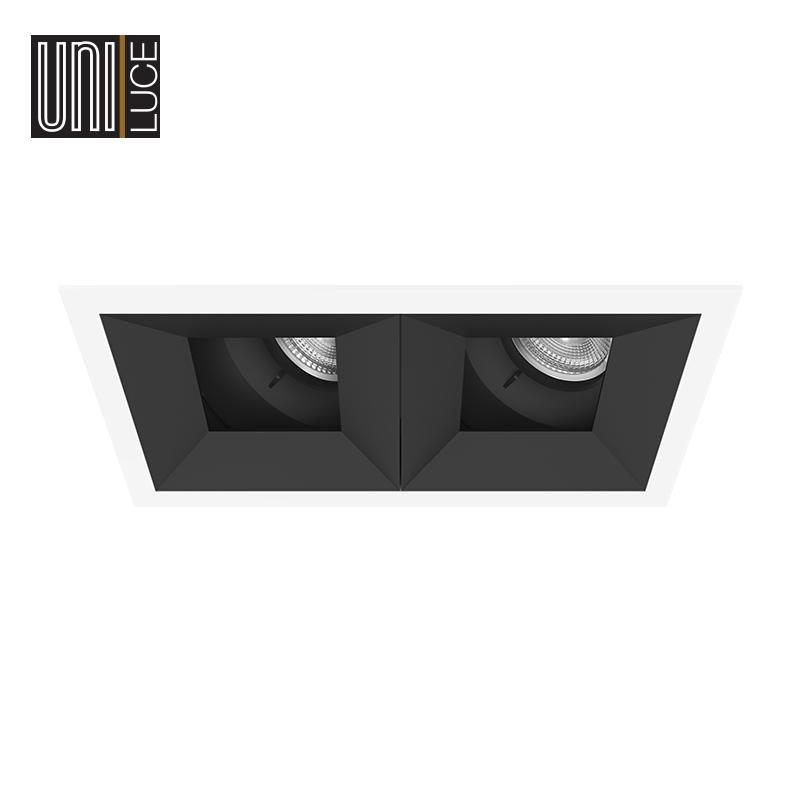

IMAGE-2 M SQ

Available colors:
442-W28SQ
442-B28SQ
442-WB28SQ
Beam angle:
8° 23°
LED Color:
2700K 3000K 4000K
LED power:
26W
Lamp Power:
28W 350mA
CRI:
80
Lamp Lumen:
2850lm
Location:
Interior
Fixation:
Ceiling
Installation:
Recessed

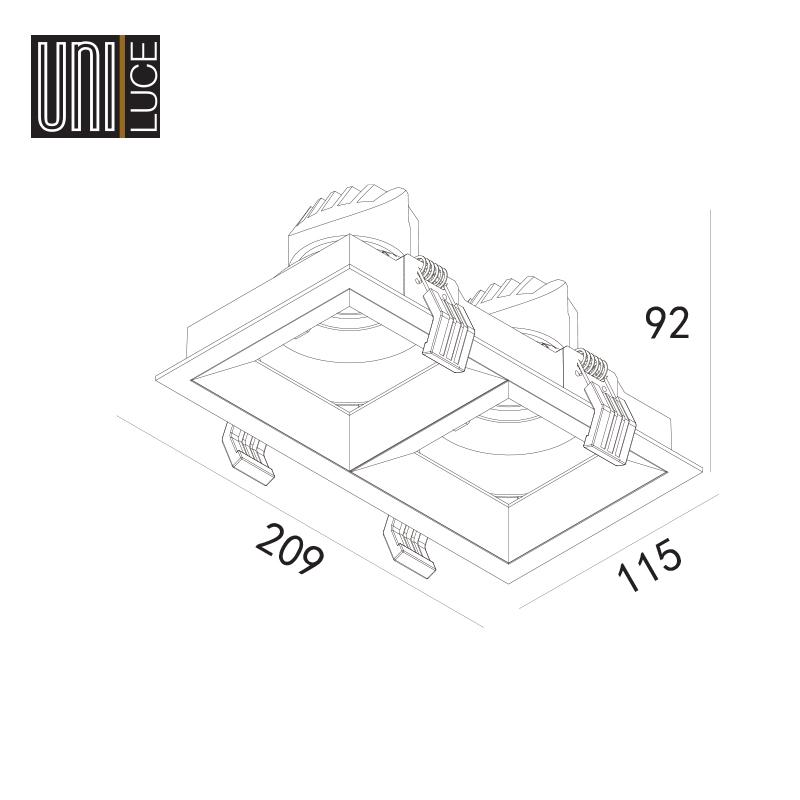

Product dimension:
209x115x92mm
Cut hole size:
192x102mm
Input:
220-240V 50\60Hz
IP:
20
Class:
III
DIM Option:
ON/OFF DALI TRIAC
select options
contact OUR manager
Download PDF
IMAGE-2 M SQ
IMAGE-2 M SQ
Download | Links
IMAGE-2 M SQ IES.rar
