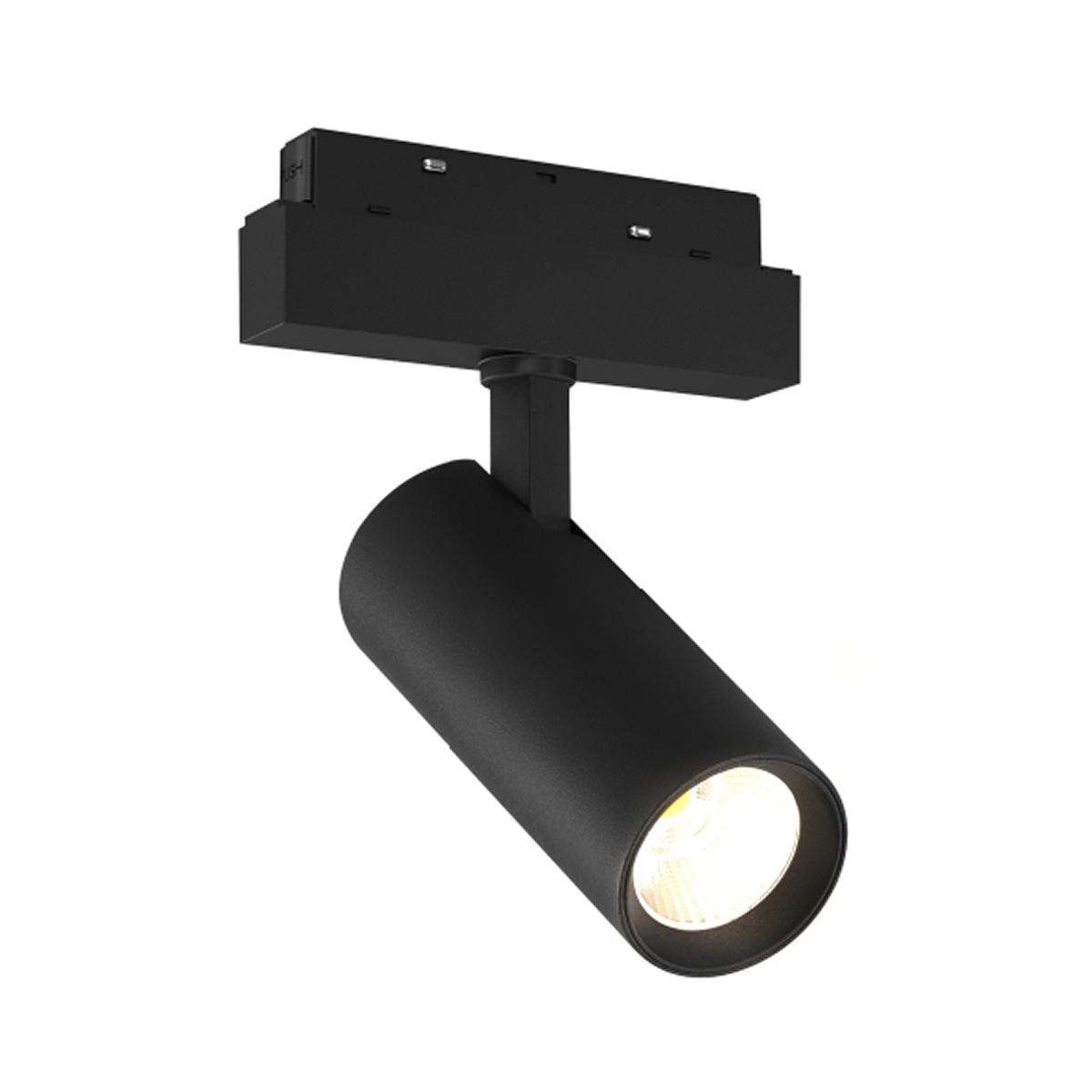

SIGMA SPOT 18

The SIGMA system is a compact low voltage (48V) track system in which LED lighting fixtures are mounted. It has no limitations in terms of length and allows create configurations from the ceiling to the walls making unexpected shapes and configuration from straight to curcles and semi-curcles. SIGMA track has different installation methods including recessed, surface mounting and suspending. Recessed track has 2 installation possibilities: before and after ceiling mount.  In the SIGMA lighting system, you can easily change the number of lighting fixtures and their arrangements, creating new lighting patterns in the room. Thanks to great veriety of lamps, SIGMA system can match any interior style. A special click mechanism ensures reliable fixation of the lighting fixtures in the track. Brightness adjustment, management via the DALI protocol, or 1-10V. Turnable white function is available for choice as well.

Available colors:
20938-W18
20938-B18
Beam angle:
15° 24° 38° 60°
LED Color:
3000K 4000K 5000K
Lamp Power:
18W
CRI:
90
Lamp Lumen:
1466lm
Material:
aluminium
Location:
Interior
Fixation:
Ceiling
Installation:
Track

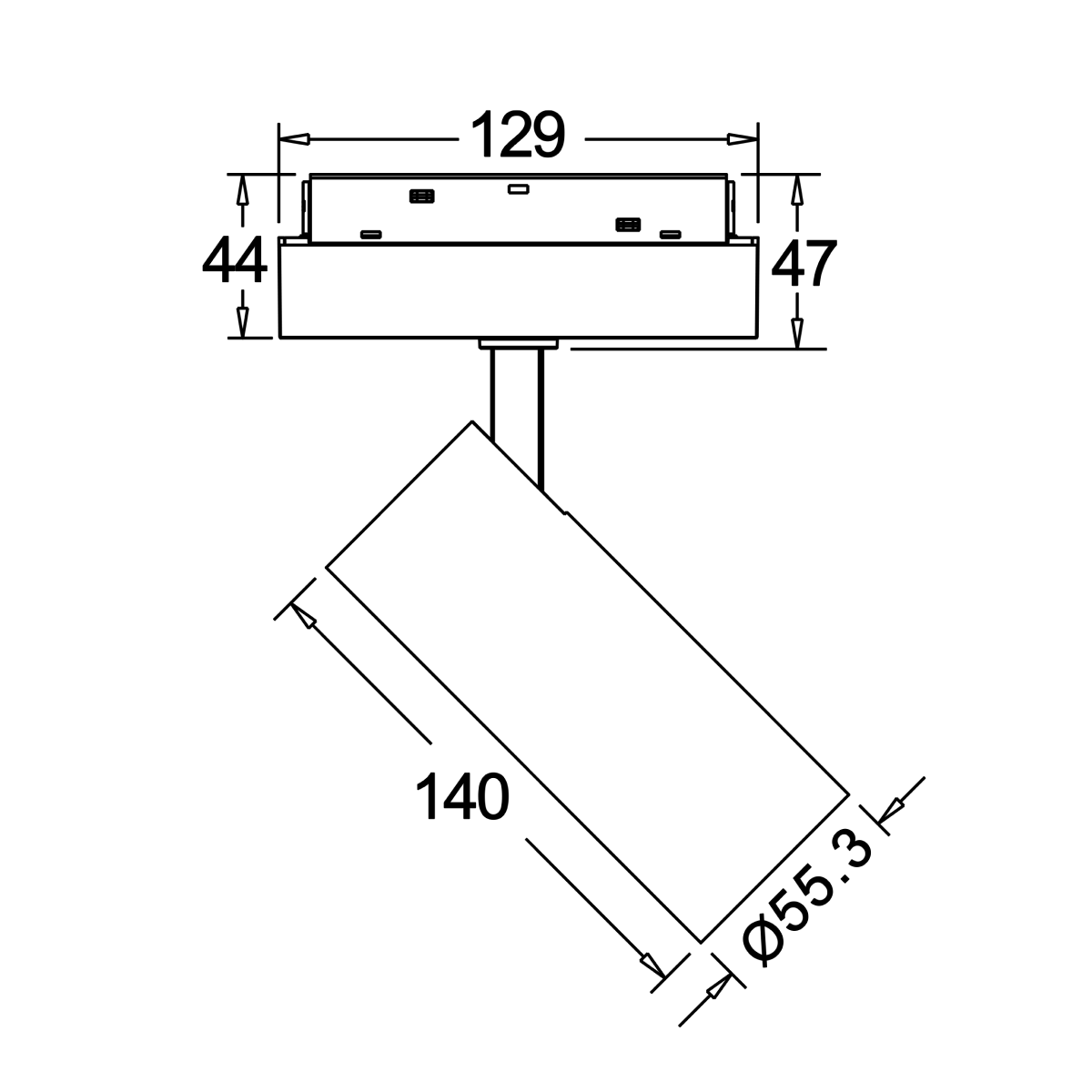

Product dimension:
Ø55.3xL140mm
Input:
48V DC
IP:
20
select options
contact OUR manager
Download PDF
